Barbed Wire Machine

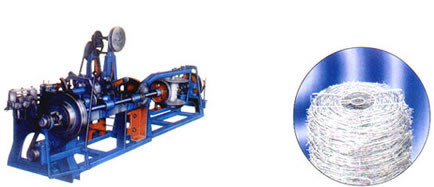

Barbed Wire Machine is designed to produce screens with double (or single). Stranded barbed steel wire, thermo-plated with zinc. The machine is of horizontal design, consisting of two parts, assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.


Gauge of Strand and Barb in B.W.G. Approximate Length per Kilo in Meter
Barbs spacing 3" Barbs spacing 4" Barbs spacing 5" Barbs spacing 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386

Specification
Diameter, screen wire 2.5-3mm Material, screen wire & barbed wire Low carbon steel wire, thermo-plated with zinc
Diameter, wire for barbs 2-2.5mm total weight 1500 kgs
Barb pitch spacing 3,4,5,6in power of motor 3 kw
PVC-plated -
